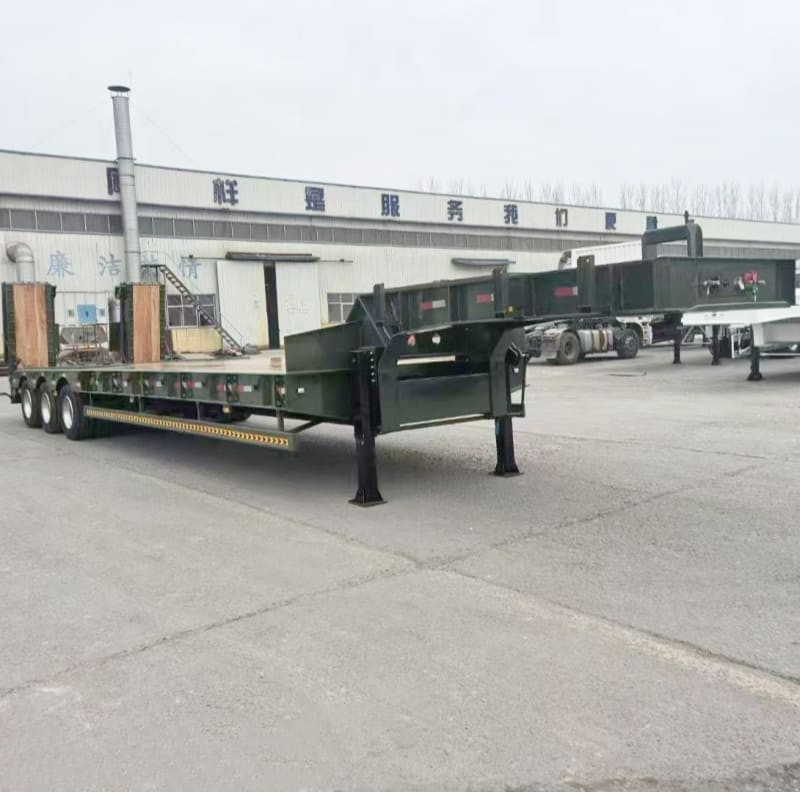

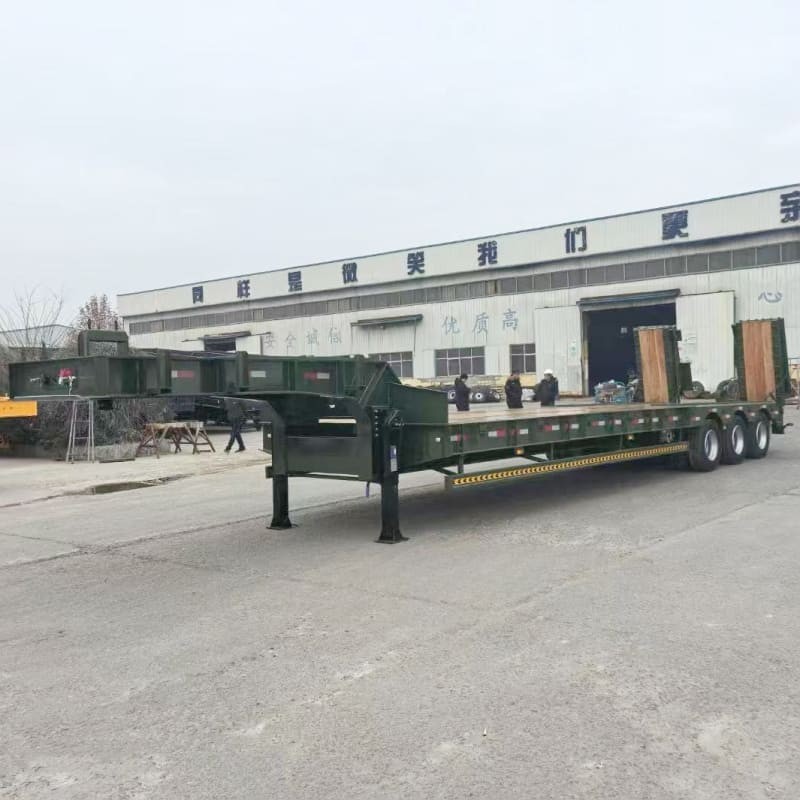

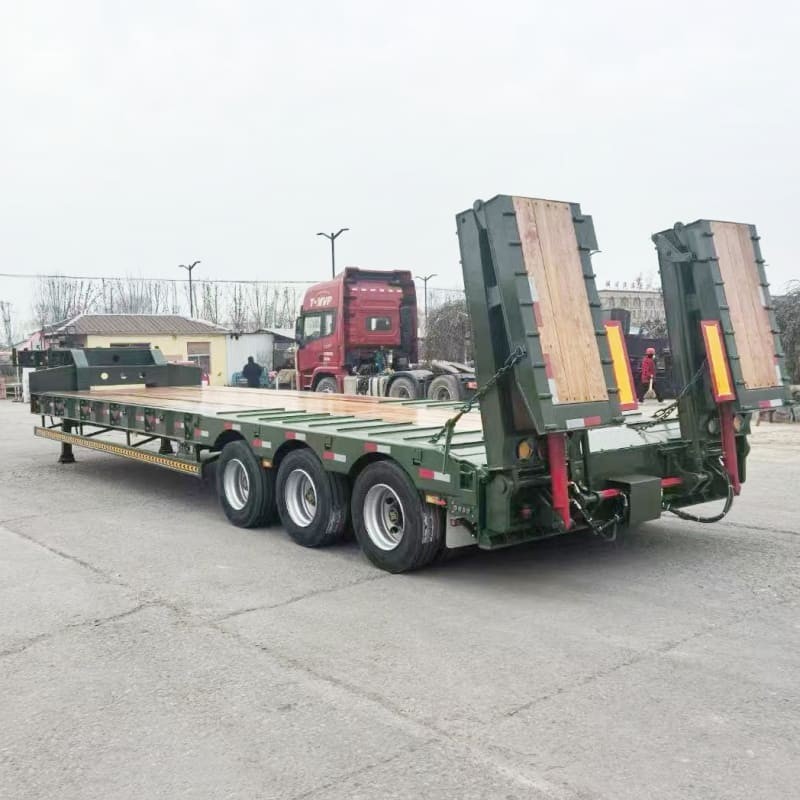

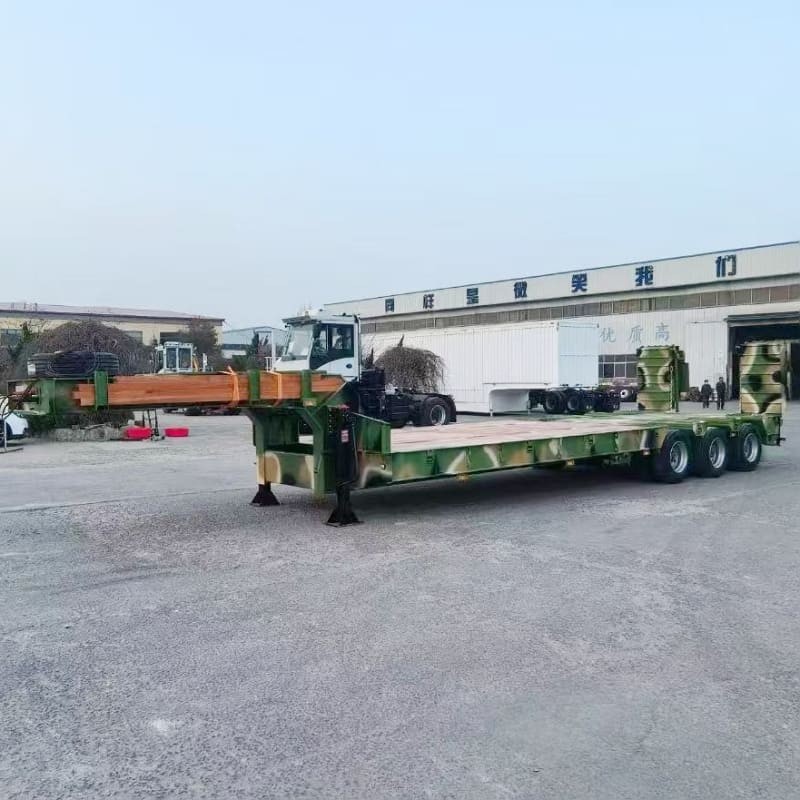

The lowbed semi-trailer pictured features a three-axle design, resulting in a compact and sturdy overall structure. The rear of the flatbed is equipped with a foldable or reversible ladder structure, facilitating the loading and unloading of cargo such as construction machinery and large transformers.
Constructed of high-strength steel, the vehicle's body is capable of withstanding heavy loads, making it suitable for long-distance transport of large cargo in industrial manufacturing, construction, and other fields.
Contact Us for Quotation:
WhatsApp: 224610899999
Email: info@taihangvehicle.com
The extendable function allows for flexible load length adjustments, from a short base length to a long extended length, easily accommodating cargo of varying sizes, such as excavators and wind turbine towers. This reduces vehicle replacement costs and allows for multiple uses, increasing equipment utilization.

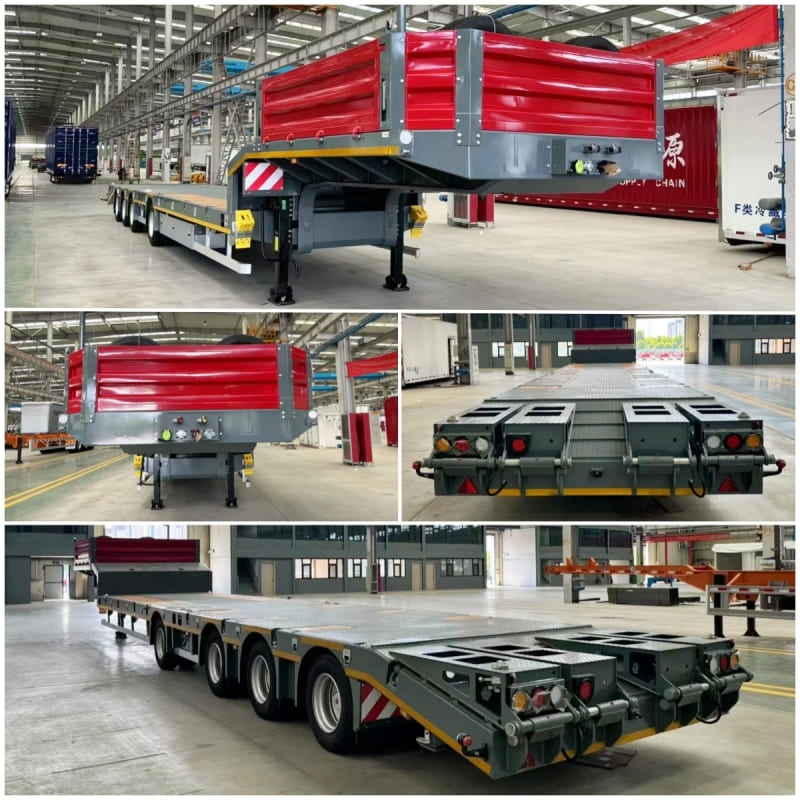

The 4 axle design distributes the load efficiently, and the high-strength frame and suspension system effectively distribute the cargo weight. This ensures smooth transport on complex road conditions (such as slopes and bumpy roads), reduces the risk of cargo damage, and enhances vehicle safety.
| Dimension(mm) | Support Customization |
| Loading capacity(ton) | 80-100 Ton |
| Ramp | Spring ramp |
| Main beam | Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel. |
| Axle Brand | 4*13/16 Ton Axle FUWA/BPW/Other Brand |
| Suspension | Mechanical Suspension/Air Suspension |
| Leaf Spring | 90(W)mm*13(Thick)mm*10 Layer |
| Kingpin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Landing gear | Jost/Fuwa/Other brand |
| Bottom Platform | 5mm thick checkered plate |
| Tire | 12R22.5, 16 units |
| Rim | 9.00-22.5 |
3/4 Axle Lowbed Trailer Drawing
Q: Are you trading or manufacturer?
A: We have our own factory and we have many years experience in semi trailer production. We sincerely welcome you to visit our factory.
Q: Where is your factory located?
A: Our factory is located in Yangzhuang Town, Yuncheng County, Heze City, Shandong Province, China.
Q: How long it will take for an order to be delivered?
A: 10 to 30 working days after we received your 30% prepayment or 100% L/C. The specific delivery time depends on the items and the quantity of your order.
Q: How about the warranty?
A: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
Q: If customized service provided ?
A:Yes, Please contact our sales manger, We can offer customized service on vehicle design /painting /Logo, etc.
Q: If our vehicle/trailer can couple with your tractor head ?
A:You can tell me that you are using the Tractor/Primer Mover model or the distance between fifth wheel and the ground, we can design a height that matches your Tractor.
Q: What's the time for delivery ?
A: If standard model we have in stock can ship it out within 10 days after payment. If uesd trailer or truck,we can ship it out within 10 days after payment. Because we have to renovate and paint it. If it is a new production,ordinary cases in 20 days can be finished for shipment.
Q: What's your payment terms ?
A: T/T: 30% deposit by T/T, 70% balance should be paid before shipment. L/C: 100% irrevocable Credit of Letter
