Taihang Vehicle produces the high quality, strong and most durable low loader semi trailer for sale which can carry excavators, bulkdozer,and other construction equipment.
With capacities often ranging from 40 to 150 tons, they are suitable for transporting large and weighty equipment, like bulldozers, cranes, or other heavy machinery, which a standard trailer would not be able to carry.
Contact Us for Quotation:
WhatsApp: 224610899999
Email: info@taihangvehicle.com

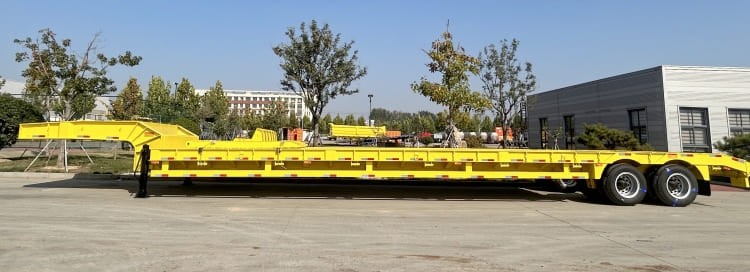

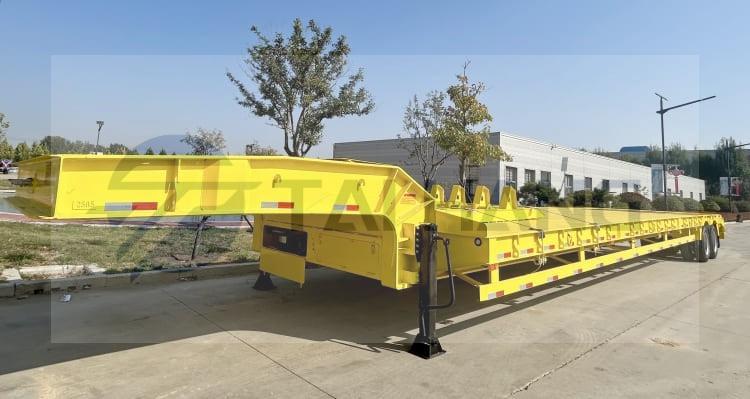

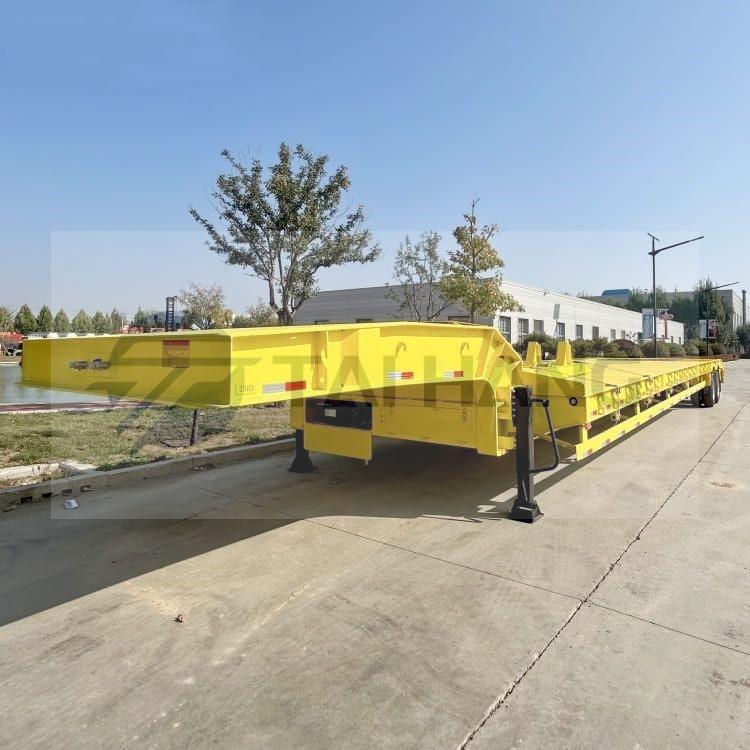

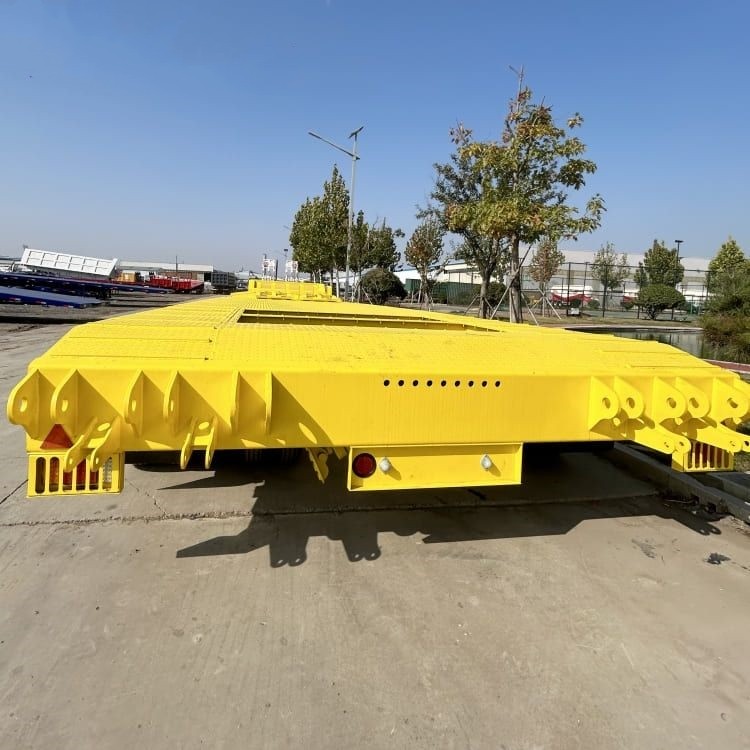

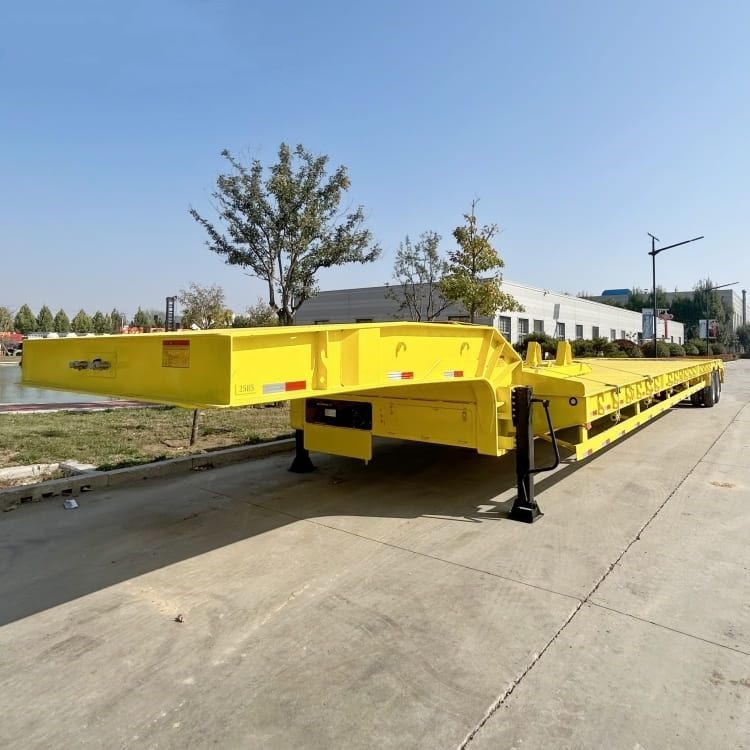

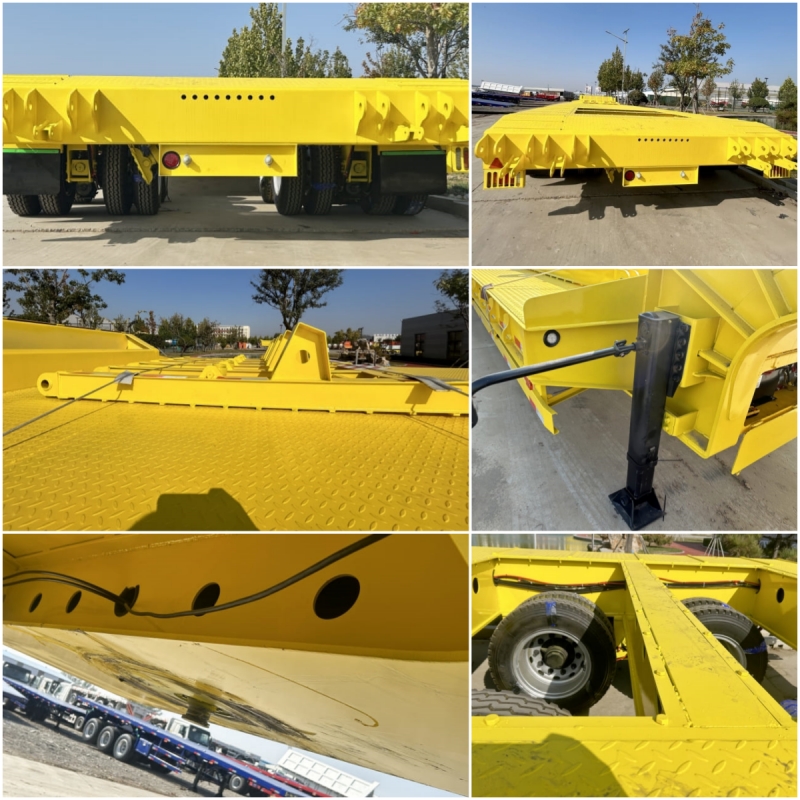

This is a 2 line 4 axle low bed trailer, constructed with high-strength steel for its main structure. The 2 line 4 axle layout (2 axles per lane, totaling 4 axles) coupled with a low-bed design allows the cargo surface to be close to the ground, making it suitable for transporting oversized cargo such as construction equipment and large machinery. It is widely used in infrastructure and logistics, facilitating the efficient transfer of large items.
The multi-axle + lowbed structure significantly lowers the cargo's center of gravity, preventing rollover and minimizing sway during travel (especially around turns and on bumpy roads), ensuring the safety of both cargo and the vehicle, and minimizing transportation losses.
| Dimension(mm): | 17000mmx3000mmx1710mm |
| Loading capacity(ton): | 60-80 Ton |
| Ramp: | Spring ramp |
| Main beam: | Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel. |
| Axle Brand: | 4*13/16 Ton Axle FUWA/BPW/Other Brand |
| Axle Number: | 2 Line 4 Axle |
| Suspension system: | Mechanical Suspension/Air Suspension |
| Leaf spring: | 90(W)mm*13(Thick)mm*10 Layer |
| Kingpin: | JOST brand 2.0 or 3.5inch(bolted or welded type) |

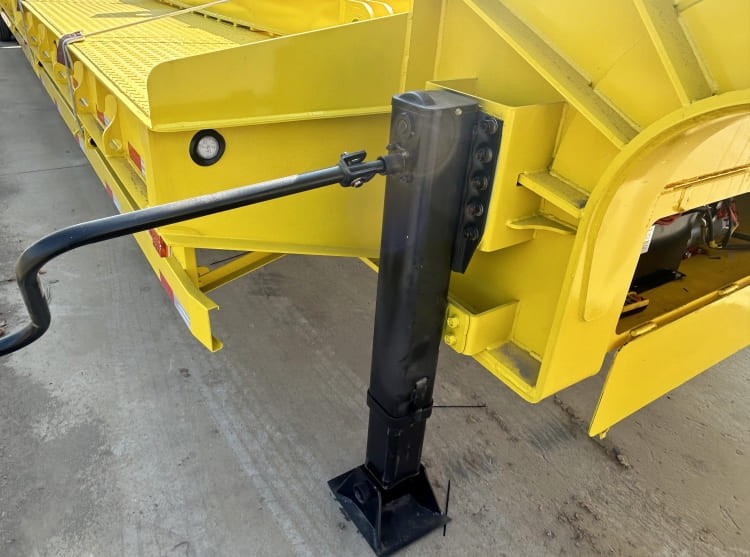

| Landing gear: | Jost/Fuwa/Other brand |
| Bottom Platform: | 5mm thick checkered plate |

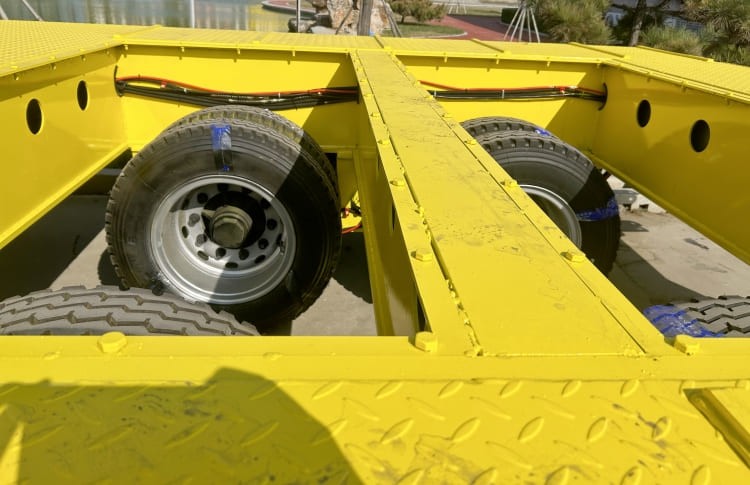

| Tire: | 12R22.5, 16 units |
| Rim: | 9.00-22.5 |
3/4 Axle Lowbed Trailer Drawing
Q: Are you trading or manufacturer?
A: We have our own factory and we have many years experience in semi trailer production. We sincerely welcome you to visit our factory.
Q: Where is your factory located?
A: Our factory is located in Yangzhuang Town, Yuncheng County, Heze City, Shandong Province, China.
Q: How long it will take for an order to be delivered?
A: 10 to 30 working days after we received your 30% prepayment or 100% L/C. The specific delivery time depends on the items and the quantity of your order.
Q: How about the warranty?
A: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
Q: If customized service provided ?
A:Yes, Please contact our sales manger, We can offer customized service on vehicle design /painting /Logo, etc.
Q: If our vehicle/trailer can couple with your tractor head ?
A:You can tell me that you are using the Tractor/Primer Mover model or the distance between fifth wheel and the ground, we can design a height that matches your Tractor.
Q: What's the time for delivery ?
A: If standard model we have in stock can ship it out within 10 days after payment. If uesd trailer or truck,we can ship it out within 10 days after payment. Because we have to renovate and paint it. If it is a new production,ordinary cases in 20 days can be finished for shipment.
Q: What's your payment terms ?
A: T/T: 30% deposit by T/T, 70% balance should be paid before shipment. L/C: 100% irrevocable Credit of Letter
